Description

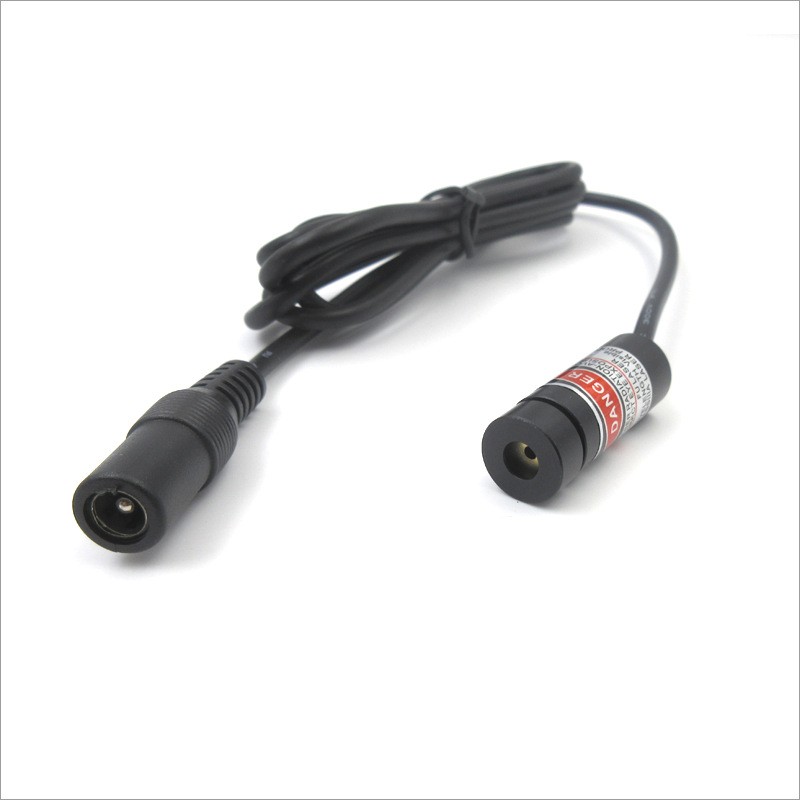

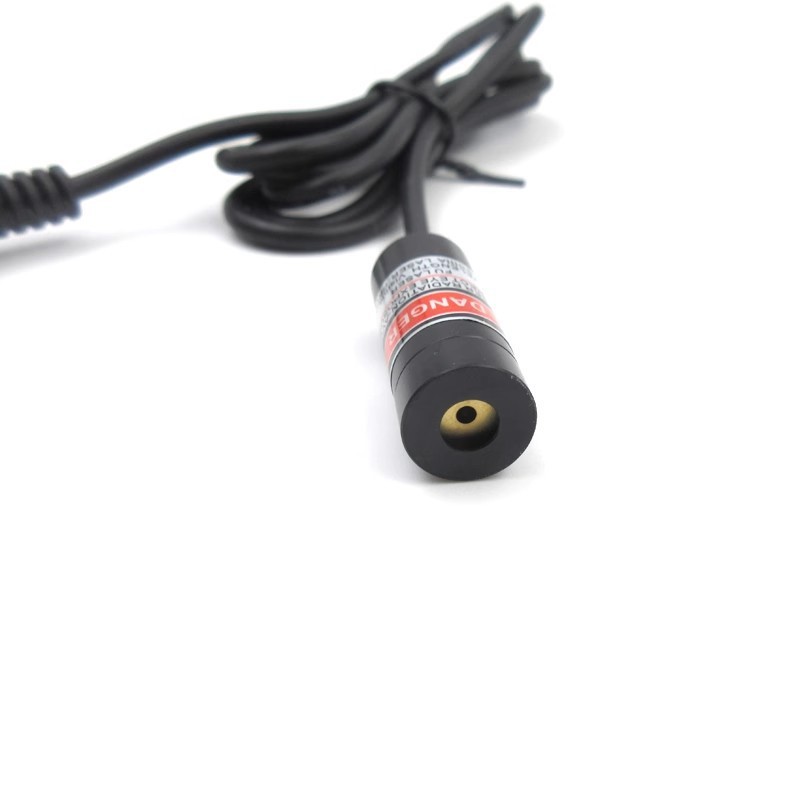

Seiko-grade 12mm diameter 32mm length 650nm externally adjustable red light point laser lamp
Detailed Images
Circular spot precision grade 12mm diameter 32mm length 650nm 0.4mw externally modulated red light spot laser (model FU650AD0.4-JGJ1232)

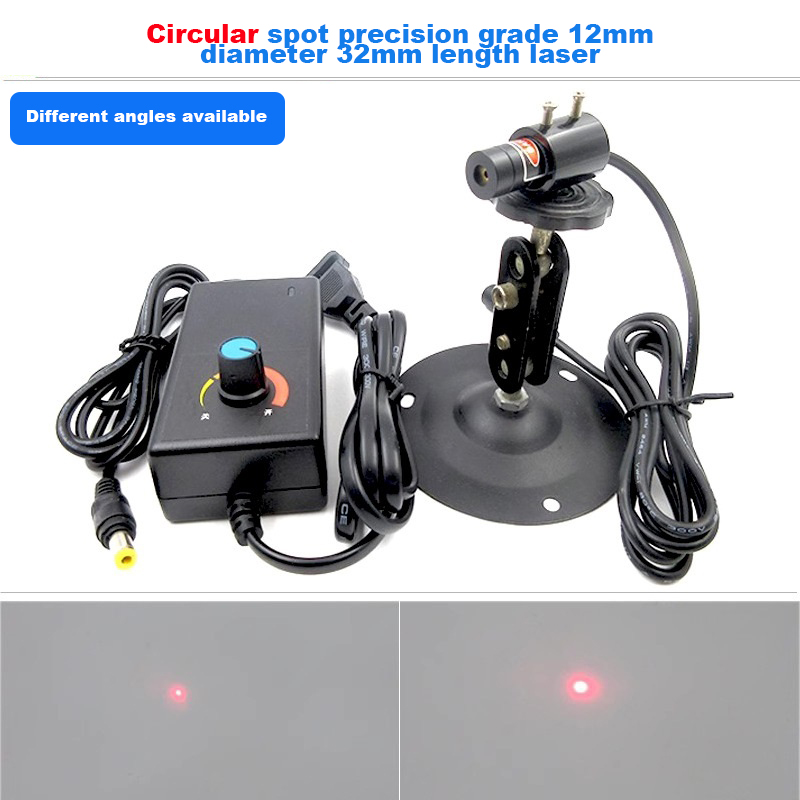

(The complete set includes: laser + bracket + 1-3V adjustable power supply)
Working voltage: DC 2.8-5.2 (V) can be customized
Working current: ≤20mA
Spot size at the light outlet: 1.8mm
Spot size at 1 meter: 1.8mm
Spot size at 3 meters: 2mm
Spot size at 5 meters: 2.5mm
-------------------------------------------------- -------------------------------------------------- -
Circular spot precision grade 12mm diameter 32mm length 650nm 5mw externally modulated red light spot laser (model FU650AD5-JGJ1232)
(The complete set includes: laser + bracket + 1-3V adjustable power supply)
Working voltage: DC 2.8-5.2 (V) can be customized
Working current: ≤35mA
Spot size at the light outlet: 1.8mm
Spot size at 3 meters: 2mm
Spot size at 5 meters: 2.5mm
Spot size at 10 meters: 5mm
-------------------------------------------------- -------------------------------------------------- -
Circular spot precision grade 12mm diameter 32mm length 635nm 5mw externally modulated red light spot laser (model FU635AD5-JGJ1232)
(The complete set includes: laser + bracket + 1-3V adjustable power supply)
Working voltage: DC 2.8-5.2 (V) can be customized
Working current: ≤50mA
Spot size at the light outlet: 1.8mm
Spot size at 5 meters: 2.5mm
Spot size at 10 meters: 5mm
Spot size at 20 meters: 15mm
-------------------------------------------------- -------------------------------------------------- -
Circular spot precision grade 12mm diameter 32mm length 650nm 30mw externally modulated red light spot laser (model FU650AD30-JGJ1232)
(The complete set includes: laser + bracket + 1-3V adjustable power supply)
Working voltage: DC 2.8-5.2 (V) can be customized
Working current: ≤80mA
Spot size at the light outlet: 1.8mm
Spot size at 10 meters: 5mm
Spot size at 20 meters: 15mm
Spot size at 30 meters: 20mm
-------------------------------------------------- -------------------------------------------------- -
Circular spot precision grade 12mm diameter 32mm length 650nm 50mw externally modulated red light spot laser (model FU650AD50-JGJ1232)
(The complete set includes: laser + bracket + 1-3V adjustable power supply)
Working voltage: DC 2.8-5.2 (V) can be customized
Working current: ≤120mA
Spot size at the light outlet: 1.8mm
Spot size at 10 meters: 5mm
Spot size at 30 meters: 20mm
Spot size at 50 meters: 30mm
-------------------------------------------------- -------------------------------------------------- -
Circular spot precision grade 12mm diameter 32mm length 650nm 100mw externally modulated red light spot laser (model FU650AD100-JGJ1232)
(The complete set includes: laser + bracket + 1-3V adjustable power supply)
Working voltage: DC 2.8-5.2 (V) can be customized
Working current: ≤150mA
Spot size at the light outlet: 1.8mm
Spot size at 10 meters: 5mm
Spot size at 50 meters: 30mm
Spot size at 100 meters: 60mm
-------------------------------------------------- -------------------------------------------------- -
Circular spot precision grade 12mm diameter 32mm length 650nm 200mw externally modulated red light spot laser (model FU650AD200-JGJ1232)
(The complete set includes: laser + bracket + 1-3V adjustable power supply)
Working voltage: DC 2.8-3.2 (V) can be customized
Working current: ≤260mA
Spot size at the light outlet: 1.8mm
Spot size at 10 meters: 5mm
Spot size at 100 meters: 60mm
Spot size at 200 meters: 120mm
-------------------------------------------------- -------------------------------------------------- -
Other parameters:
Wavelength: 650nm red light/635nm red light (can be customized)
Power: 0.4-200mw (optional)
Overall dimensions: 12*32mm (can be customized)
Spot mode: dot shape (can be made into a line or cross line effect)

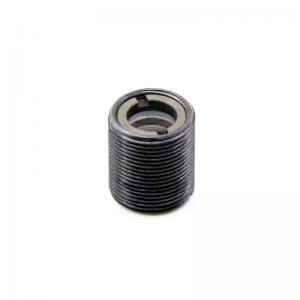

Optical lens: collimated point focusing lens
advantage:
◆ Precision-grade product, the irradiated dots have less stray light, less halo, and good light shape;
◆ The size of the red dot is adjustable from 0.4 mm to several centimeters to meet your different usage requirements;
◆ The 635nm/650nm wavelength laser is pure red, clear and bright, soft and non-glaring;
◆ Brand new imported tube core, Taiwan lens, can be turned on 24 hours a day;
◆ Intelligent driver board with imported IC can supply power in a wide range, other voltages can be customized;
◆ The interior is filled with heat-dissipating silica gel and AB glue, which can not only fully dissipate heat, but also be shock-proof and anti-fall;
◆ The shell is made of aviation aluminum with insulating paint, which can not only fully dissipate heat, but also be shock-proof, drop-proof and anti-static;
◆ High temperature resistant and corrosion resistant wires, suitable for use in all weather and all environments;
◆ Wavelength, power, wire length, working distance, spot effect, etc. can all be customized according to customer requirements. Whatever you want is available here!
