Home Products Collimator lens M10 635nm Collimator lens f11.2mm optica
M10 635nm Collimator lens f11.2mm optical aspheric laser focus lensM10 635nm Collimator lens f11.2mm optical aspheric laser focus lensM10 635nm Collimator lens f11.2mm optical aspheric laser focus lensM10 635nm Collimator lens f11.2mm optical aspheric laser focus lens

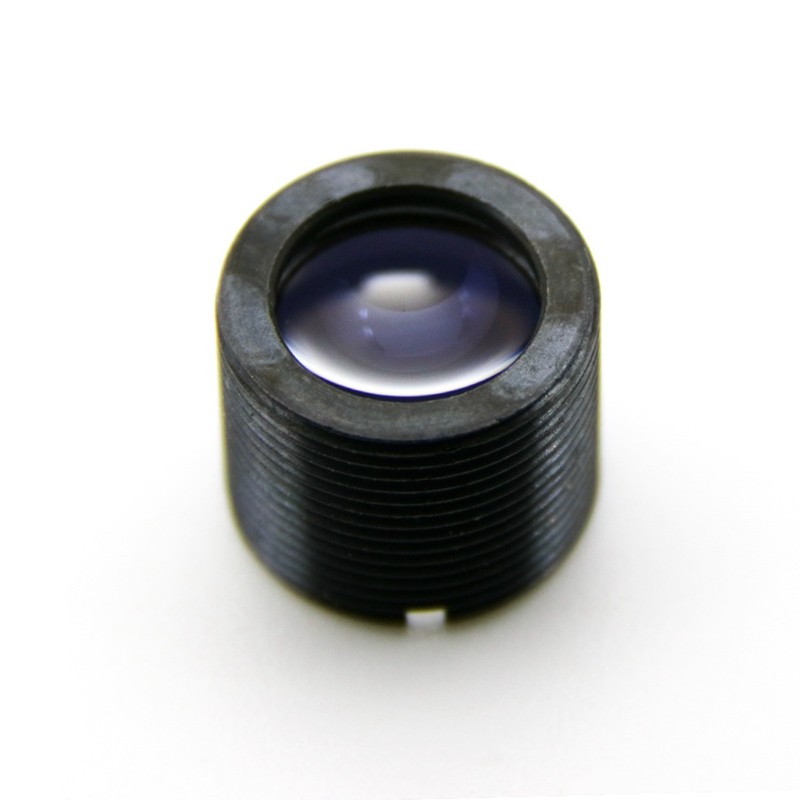

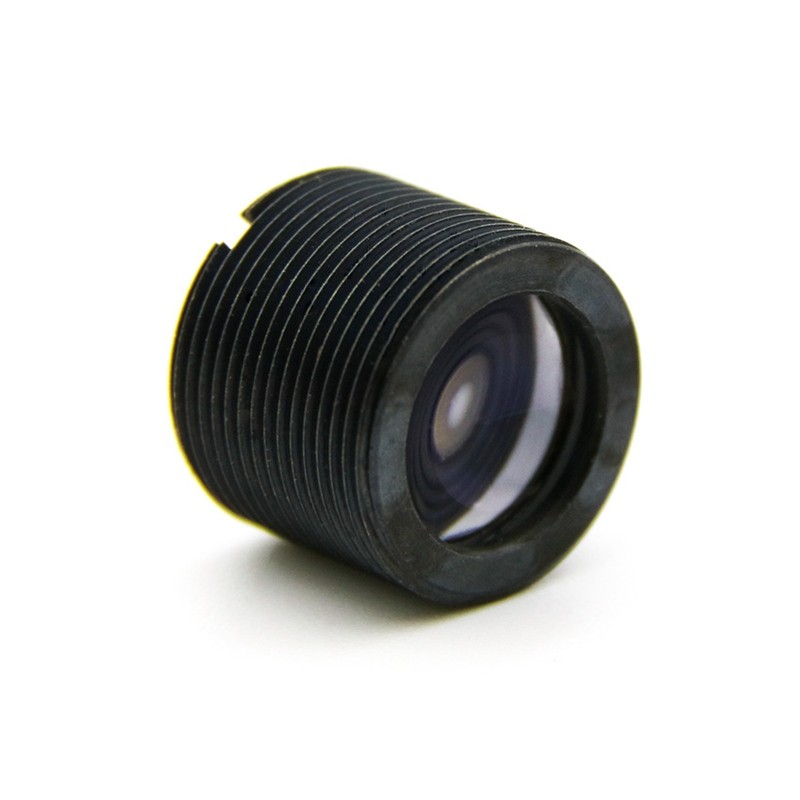

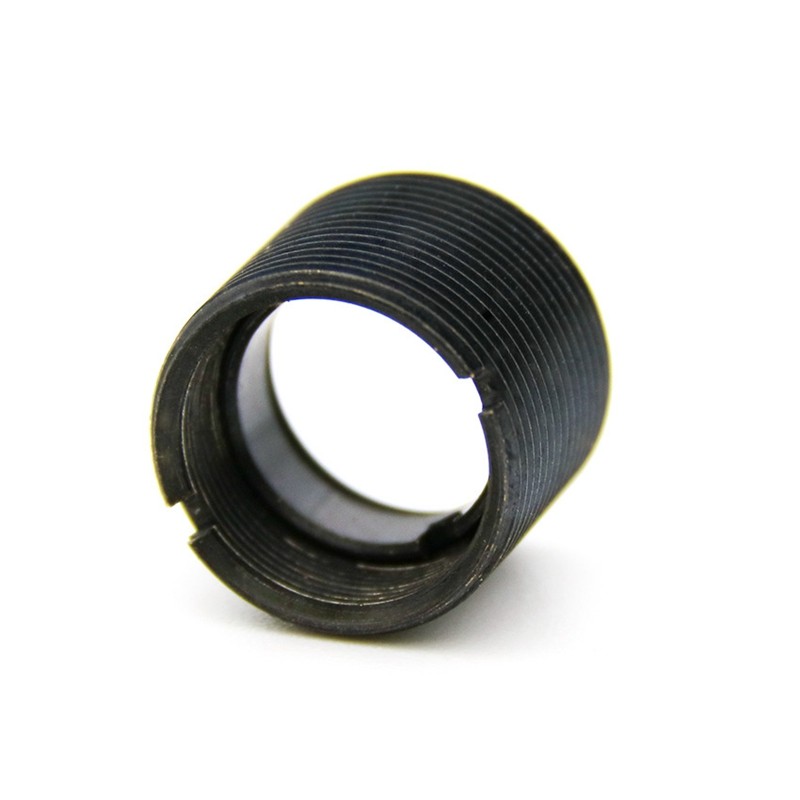

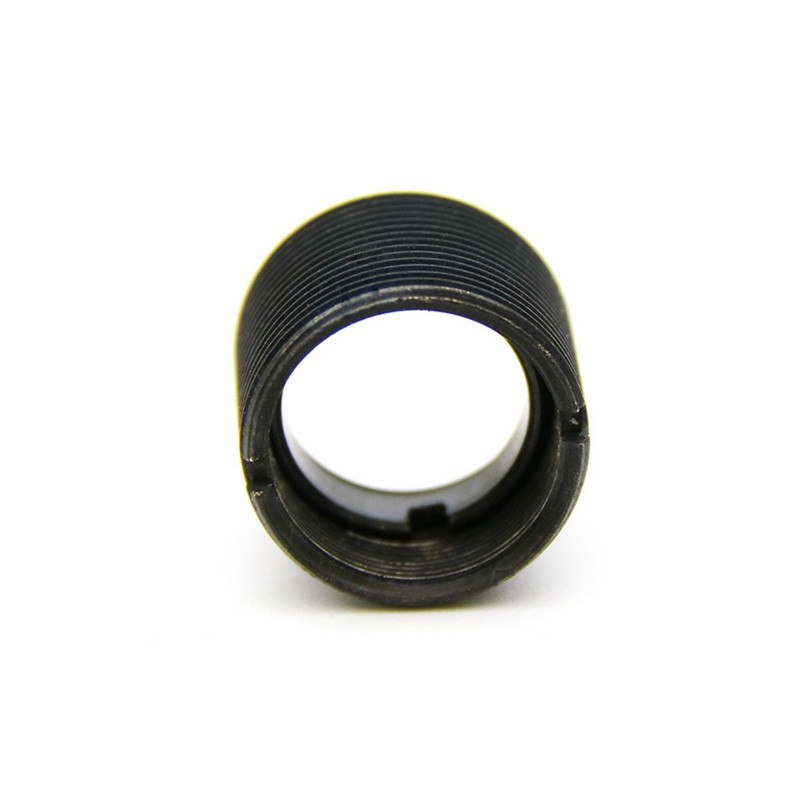

M10 635nm Collimator lens f11.2mm optical aspheric laser focus lens

  • collimator lens laser
  • f11.2mm collimator lens customized
  • custom collimator lens
  • glass collimator lens wholesale
  • Inquiry Send Email

    Description


    635nm Collimator lens f11.2mm optical aspheric laser focus measurement lens collimation lens





    For Collimating lens, the focal length we have 3.77mm,4.02mm, 4.39mm,6mm,6.2mm ,6.5mm,8mm, 8.3mm, 9.8mm, 10mm,11.2mm and 12mm.

    Check the stock lenses in the following files.



    Contact:Rebecca Xu

    Email: rebecca@realpoo.cn
