Home Products Collimator lens M9P0.5*8mm collimator lens 400~700nm F3.
M9P0.5*8mm collimator lens 400~700nm F3.77mm collimating lensM9P0.5*8mm collimator lens 400~700nm F3.77mm collimating lensM9P0.5*8mm collimator lens 400~700nm F3.77mm collimating lensM9P0.5*8mm collimator lens 400~700nm F3.77mm collimating lens

M9P0.5*8mm collimator lens 400~700nm F3.77mm collimating lens

  • 400-700nm collimator lens
  • 3.77mm collimator lens
  • custom Laser collimator lens
  • glass collimator lens
  • Inquiry Send Email

    Description

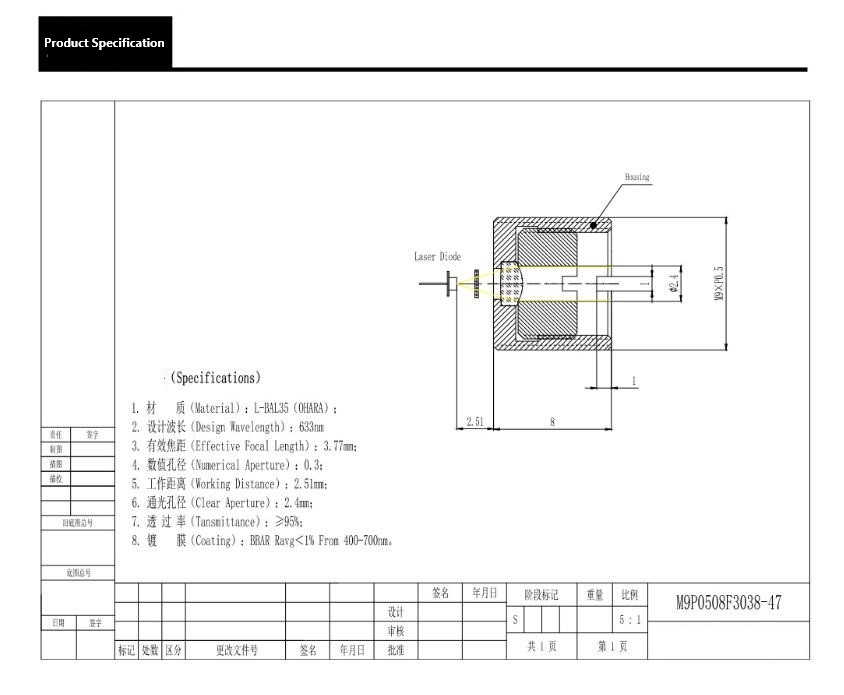

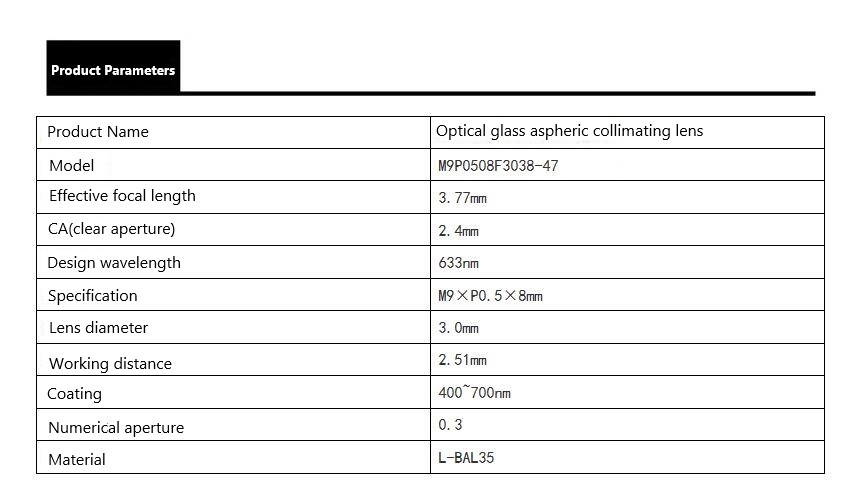

    400~700nm coating clear aperture 2.4mm focal length 3.77mm collimating focusing lens



    For Collimating lens, the focal length we have 3.77mm,4.02mm, 4.39mm,6mm,6.2mm ,6.5mm,8mm, 8.3mm, 9.8mm, 10mm,11.2mm and 12mm.

    Check the stock lenses in the following files.



    Contact:Rebecca Xu

    Email: rebecca@realpoo.cn

    Inquiry Us
